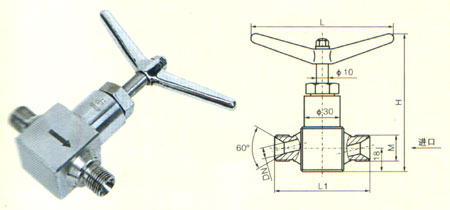

直通式手動截止閥
YKJ5708.1～2 |
|
| |
 |
|
| 公稱壓力 |
PN≤35MPa |
| 工作介質 |
腐蝕性介質 |
| 工作環境溫度 |
-40～+50℃ |
| 閥體材料 |
1Cr18Ni9Ti |
|
|
| |
| 代號 |
DN |
M |
L |
L1 |
L2 |
H |
d |
D |
PN |
| KJ5708.1-01 |
4 |
M14×1.5 |
120 |
70 |
18 |
118 |
10 |
30 |
23 |
| KJ5708.2-01 |
6 |
M18×1.5 |
120 |
72 |
18 |
118 |
10 |
30 |
23 |
| KJ5708.3-04 |
8 |
M20×1.5 |
120 |
88 |
22 |
122 |
10 |
30 |
23 |
| KJ5708.4-04 |
10 |
M22×1.5 |
120 |
90 |
22 |
122 |
10 |
30 |
23 |
| KJ5708.5-04 |
15 |
M27×1.5 |
120 |
108 |
21 |
166 |
10 |
40 |
23 |
| KJ5708.6-04 |
20 |
M36×1.5 |
120 |
110 |
21 |
166 |
10 |
40 |
23 |
| KJ5708.7-04 |
25 |
M39×1.5 |
160 |
124 |
28 |
220 |
14 |
38 |
23 |
| KJ5708.2A-01 |
6 |
M18×1.5 |
120 |
72 |
18 |
118 |
10 |
30 |
35 |
|
| |
|
| |
 |
|
| 公稱壓力 |
PN≤6.4MPa |
| 工作介質 |
腐蝕性介質 |
| 工作環境溫度 |
-40～+50℃ |
| 閥體材料 |
1Cr18Ni9Ti |
|
|
| |
| 代號 |
DN |
M |
L |
H |
| KJ36/01 |
4 |
M14×1.5 |
84 |
118 |
| KJ36/02 |
6 |
M16×1.5 |
120 |
120 |
| KJ36/04 |
10 |
M22×1.5 |
120 |
120 |
|
| |
|
| |
 |
|
| 公稱壓力 |
PN≤40MPa |
| 工作介質 |
非腐蝕性氣體 |
| 工作環境溫度 |
-40～+50℃ |
| 閥體材料 |
1Cr18Ni9Ti |
|
|
| |

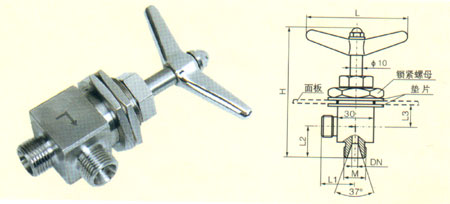

面板固定手動截止閥
YKJ5704.1～4-91/G
|
|
| |
 |
|
| 公稱壓力 |
PN≤35MPa |
| 工作介質 |
非腐蝕性氣體 |
| 工作環境溫度 |
-40～+50℃ |
| 閥體材料 |
2Cr13 |
|
|
| |
| 代號 |
DN |
M |
L |
L1 |
L2 |
L3 |
H |
面板上開孔 |
| KJ5704.1-91G |
4 |
M14×1.5 |
84 |
28 |
26 |
～19 |
118 |
Ø31 |
| KJ5704.2-91/G |
6 |
M18×1.5 |
84 |
28 |
26 |
～19 |
118 |
Ø31 |
| KJ5704.3-91/G |
8 |
M20×1.5 |
120 |
31 |
29 |
～35 |
127 |
Ø31 |
| KJ5704.4-91/G |
10 |
M22×1.5 |
120 |
31 |
29 |
～35 |
135 |
Ø31 |
|
| |
