彈簧

壓力調節范圍

PSIG

Bar

KPa

A

250-1500

17-103

1700-10300

B

1500-3000

103-207

10300-20700

C

3000-4500

207-310

20700-41400

D

4500-6000

310-414

31000-41400

Basic Part No.

Orifice

End Connections

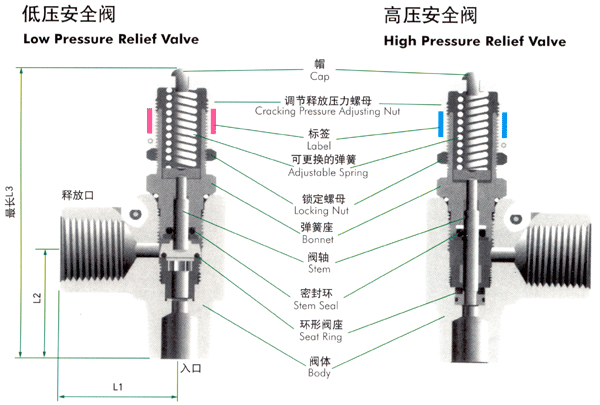

Dimensions

Inlet

Outlet

L1

L2

L3

RV1
or
RV2

H

-4 T-

4.8

1/4" Hy-Lok

1/4" Hy-Lok

38.7

37.3

104.6

H

-6M-

6mm Hy-Lok

6mm Hy-Lok

H

-8M-

8mm Hy-Lok

8mm Hy-Lok

H

-8 T-

1/2" Hy-Lok

1/2" Hy-Lok

46.7

46.7

114.0

H

-12M-

12mm Hy-Lok

12mm Hy-Lok

MH

-8N8T-

1/2" Male NPT

1/2" Hy-Lok

MH

-8N12M-

1/2" Male NPT

12mm Hy-Lok

35.7

103.0

MF

-4N-

1/4" Male NPT

1/4" Female NPT

30.0

MF

-6N-

3/8" Male NPT

3/8" Female NPT

34.5

32.2

99.5

MF

-8N-

1/2" Male NPT

1/2" Female NPT

38.0

35.7

103.0
